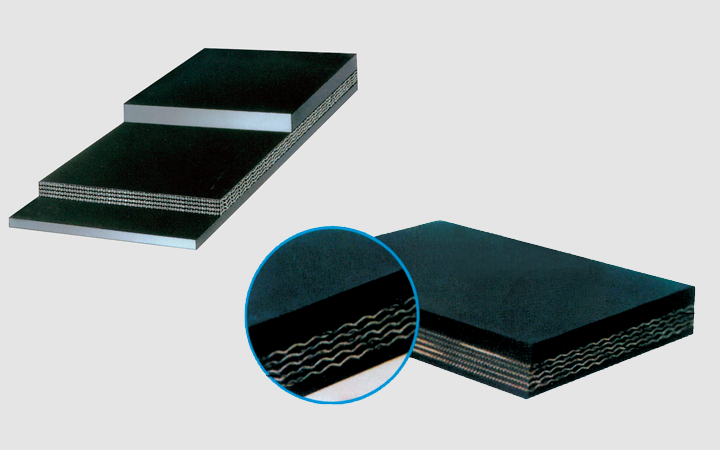

Implementation Standards: Multi-ply textile conveyor belts comply with national standard GB/T 7984, as well as German DIN 22102, Japanese JIS K 6322 and Australian AS 1332 standards. Conveyor belts with special requirements shall also comply with GB/T 10822, HG/T 3647, HG/T 3782, GB/T 20021, HG/T 3714 and HG 2805 standards. Any special requirements from customers can be determined through negotiation.
分层输送带标记示例
|
GB/T7984 |
400 |
1200 |
EP |
5 |
1000 |
4+2 |
L |
|
标准代号 |
长度 (m) |
宽度 (mm) |
带芯材质代号 |
带芯层数 |
纵向全厚度拉伸强度 |
上、下覆盖层厚度 |
覆盖层性能等级代号 |
卷曲直径计算方法：
其中：d=带体厚度（mm）， l=带体长度（m)
d=上覆盖胶（mm）+下覆盖胶（mm）+层数×单层厚度（mm）+1
输送带生产长度由最大卷曲直径而定，详见下表：
|
带宽 mm |
400 |
500 |
600 |
650 |
800 |
1000 |
1200以上 |
|
半成品最大卷曲直径mm |
1100 |
1300 |
1600 |
1700 |
2100 |
2600 |
2800 |
织物芯输送带订货须知：
织物芯输送带的表示依次为：带宽、织物芯层数、上覆盖胶厚度+下覆盖胶厚度、带长、织物芯型号规格、覆盖胶性能。
胶带m2的计算方法：
例如：耐热输送带180m 1200 EP5 1000 6.0+3.0 T2
即：平方米=1.2m×【5mm+（6mm+3mm）/ 1.5】×180m=2376 m2
