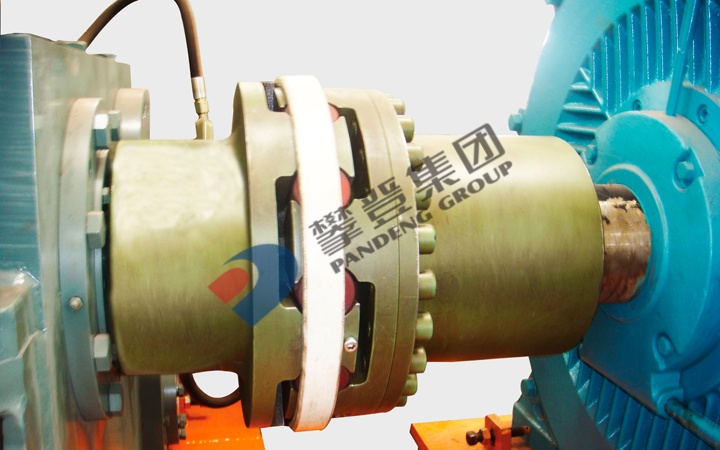

J-type Radial Jaw Elastic Coupling Developed by our company after digesting advanced technologies of similar foreign products, the J-type radial jaw elastic coupling is a new coupling specially applicable to conveying equipment. Features of J-type Radial Jaw Elastic Coupling 1. The elastic element is made of high-elasticity and high-toughness polymer material, which can effectively reduce vibration and impact generated during operation and suppress noise. 2. The elastic element is arranged radially, allowing a large tolerance for axial, radial and angular misalignment for easy alignment and installation. 3. The elastic element bears compressive load during operation, delivering high reliability and safety. 4. The elastic element can be assembled and disassembled conveniently by hand without moving the coupling hubs. 5. It features large torque transmission capacity up to 780 kN·m. 6. A brake disc can be equipped for working conditions with brakes. Structure of J-type Radial Jaw Elastic Coupling 1. JLCC Double-sided Detachable Standard Hub Coupling Radial jaw connection discs on both sides are bolted to the two coupling hubs for easy disassembly. The coupling hubs adopt standard series dimensions. 2. JLCC-1 Double-sided Detachable Long Hub Coupling Radial jaw connection discs on both sides are bolted to the two coupling hubs for easy disassembly. The coupling hubs adopt long-series dimensions. 3. JLCCS Double-sided Detachable Single Inner Hub Coupling Radial jaw connection discs on both sides are bolted to the two coupling hubs for easy disassembly. One coupling hub extends a certain length toward the middle. 4. JLCCS-P Double-sided Detachable Single Inner Hub Coupling with Brake Disc Radial jaw connection discs on both sides are bolted to the two coupling hubs for easy disassembly. One coupling hub extends a certain length toward the middle, and an additional brake disc is equipped for applications with brakes. 5. JLCCSS Double-sided Detachable Dual Inner Hub Coupling Radial jaw connection discs on both sides are bolted to the two coupling hubs for easy disassembly. Both coupling hubs extend a certain length toward the middle. 6. JL Integrated Extra-large Torque Coupling Radial jaw connection discs and two hubs form an integrated non-detachable structure. The elastic element can be easily removed without moving the coupling hubs. 7. JLC Single-sided Detachable Standard Hub Coupling The radial jaw connection disc on one side is bolted to the corresponding coupling hub for easy disassembly. The coupling hub adopts standard series dimensions. 8. JLC-1 Single-sided Detachable Long Hub Coupling The radial jaw connection disc on one side is bolted to the corresponding coupling hub for easy disassembly. The coupling hub adopts long-series dimensions. 9. JLCS Single-sided Detachable Single Inner Hub Coupling The radial jaw connection disc on one side is bolted to the corresponding coupling hub for easy disassembly. One coupling hub extends a certain length toward the middle.
